FARGO DTC4250e Single-Sided ID Card Printer with USB and Ethernet

FARGO DTC4250e ID Card Printer Overview

The FARGO® DTC4250e is a direct-to-card ID card printer built for medium-volume card programmes in businesses, schools and local government where a single desktop unit needs to handle both full-colour photo ID and optional technology card encoding. It suits operations that issue employee badges, student cards, membership credentials and access control cards regularly enough to need a dependable workhorse, but not in the kind of volume that demands industrial equipment. What sets the DTC4250e apart within the HID FARGO range is its modular design: encoding capability, dual-sided printing and an expanded input hopper can all be added in the field as your programme grows, so you’re not locked into a fixed specification from day one.

Specifications

What’s Included:

• DTC4250e single-sided printer
• USB 2.0 cable
• US/EU power cords
• Software installation CD with printer driver and user guide
• Warranty documentation

Print quality and speed for a working card programme

The DTC4250e prints a full-colour YMCKO card in 16 seconds. For operations that produce employee badges or student cards in batches, that translates to roughly 225 cards per hour. Monochrome runs are considerably faster at 6 seconds per card, which suits visitor passes, membership cards and any job where a single-colour design gets the work done.

Print resolution sits at 300 dpi with continuous tone output, so photos, logos and barcode graphics all come out cleanly at card size. The Color Assist tool inside FARGO Workbench handles spot-colour matching, which is useful when a company logo needs to print accurately against a specific brand colour. The DTC4250e is also fully compatible with Asure ID card personalisation software for badge design, database management and credential production.

The printer includes a SmartScreen graphical display that walks users through setup and alerts them to printer status, so staff members who don’t use it every day can operate it without extensive training. Card cleaning is built into the ribbon cartridge: a cleaning roller is integrated into each ribbon, and a new roller comes with every ribbon change, so the card path stays free of dust and debris as part of normal supply replacement.

Modular encoding and dual-sided printing options

The DTC4250e ships as a single-sided printer with USB and Ethernet. From there, it can be upgraded in the field to suit more demanding programmes.

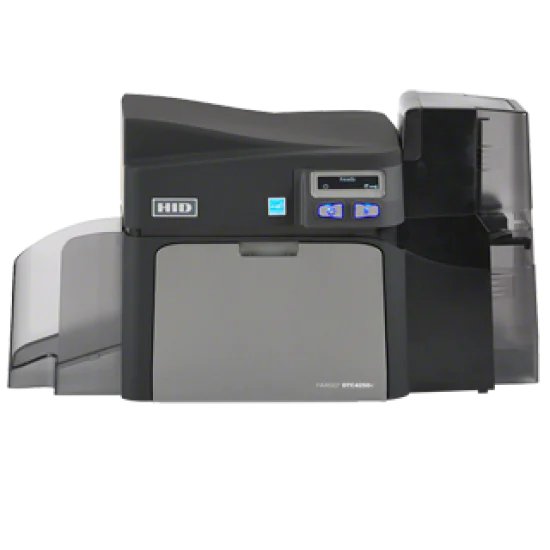

Dual-sided printing can be added as a field-upgradeable module, allowing the printer to output colour on the front and black text or barcodes on the reverse in a single pass. The YMCKOK ribbon supports this layout, with the second resin black panel handling back-of-card printing.

Encoding options cover the main smart card and magnetic stripe technologies: ISO magnetic stripe, HID Prox, iCLASS, iCLASS SE and MIFARE are all supported through optional factory-ordered or field-upgradeable modules. The optional iCLASS SE encoder writes organisational and personnel data directly onto the card during the print run. AES-256 encryption protects data in transit over the network, and password protection on the printer means only authorised operators can print or encode.

For sites that issue temporary credentials, the printer supports an eco-friendly erase and rewrite feature on compatible rewritable cards, so visitor or contractor passes can be cleared and reused without a ribbon.

An optional same-side input/output hopper lets the printer fit into tighter desk spaces by keeping the card feed and output on the same side. The standard input hopper holds 100 cards; an optional dual-input hopper expands this to 200.

Warranty, driver and ongoing supplies

The FARGO DTC4250e is covered by a three-year warranty on both the printer and the printhead. The printer driver supports Windows and Mac OS X, with Linux support available. FARGO Workbench handles firmware updates, calibration, diagnostics and advanced settings, so your support team can manage the printer from the same interface used for day-to-day maintenance.

For ribbons, the FARGO DTC4000 / DTC4250e YMCKO Colour Ribbon is the full-colour ribbon for single-sided colour printing, giving 250 prints per cartridge with an integrated cleaning roller. If you add the dual-sided module, the FARGO DTC4000 / DTC4250e YMCKOK Colour Ribbon handles full colour on the front and black on the reverse, at 200 prints per cartridge. To maintain print quality and printhead life, the FARGO 86177 Cleaning Kit covers the DTC4250e and includes printhead pens, cleaning cards and cleaning pads. HID recommends using a cleaning kit during each ribbon change to ensure the printhead remains dust- and debris-free.

If your programme is smaller and you don’t need Ethernet as standard or the larger hopper options, the FARGO DTC1250e is a more straightforward fit at a lower entry cost.

Who the FARGO DTC4250e was Designed for

The DTC4250e is the right choice for medium-sized organisations that need to print professional-grade ID cards reliably, with the option to add encoding or dual-sided output as their programme develops.

• Corporate HR and facilities teams: Issue employee photo ID badges and access control credentials from a single desktop unit connected to the network.
• Schools and colleges: Print student cards, staff IDs and visitor passes in-house with a printer that non-specialist staff can operate day to day.
• Local government departments: Produce durable credentials for staff and contractors, with encoding options for sites that issue technology cards alongside photo ID.
• Membership and leisure organisations: Run regular card issuance for members and staff without the cost of outsourcing, using a printer that handles varied print runs efficiently.
• Healthcare organisations: Print secure staff badges with optional encoding for access control, with password protection limiting printer access to authorised operators.
