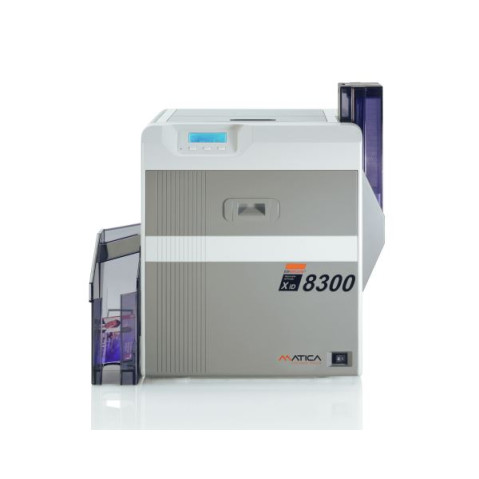

Matica XID8300 Retransfer Card Printer

The Matica XID8300 (part number 37-1410) is a mid level retransfer card printer built for organisations that need photographic quality identity cards without moving up to a full industrial system. It uses over-the-edge retransfer technology to print sharp, edge-to-edge full colour images that cover the entire card surface, so there is no white border around the finished card.

This printer suits busy environments such as event accreditation, education, corporate access and membership schemes where personalised passes, badges and secure ID need to be produced on demand. Because retransfer printing works on uneven surfaces, the XID8300 handles contact and contactless smart cards particularly well and holds its clarity even over embedded chips.

The metal chassis makes the unit robust and dependable for daily use. Its modular design means you can start single sided then expand later, keeping the XID8300 relevant as your requirements grow.

Specifications

How to choose

The XID8300 prints on standard CR-80 cards in PVC, ABS, PET and polycarbonate, giving you scope for everything from simple visitor passes through to durable long-life credentials. It is available in single sided and double sided configurations, so choose double sided if you need to print information or security features on the reverse. To keep the lifetime printhead warranty in place you should run genuine EDIsecure ribbons and retransfer film. If you are unsure which consumables or configuration match your project, the Plastic ID team can help you specify the right setup.

Frequently asked questions

What is retransfer printing and why does it matter? Retransfer prints the image onto a clear film first then fuses that film to the card. This produces over-the-edge coverage with no white border and gives noticeably sharper results than direct-to-card printing, especially on smart cards with uneven surfaces.

Can the XID8300 print double sided? Yes. The printer is offered in single sided and double sided versions and its modular design lets you add capability as your needs change.

Which cards can I use? It accepts standard CR-80 sized cards (85.60 x 53.98 mm) in PVC, ABS, PET and polycarbonate. The 200 card input hopper and 100 card output hopper are rated for standard 0.76 mm cards.

Does the printer come with a warranty? It carries a 24 month manufacturer warranty. The printhead is covered for its lifetime provided you use EDIsecure materials, subject to the manufacturer conditions.
