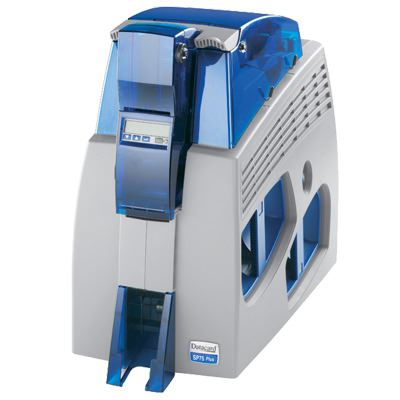

Datacard SP75 Plus Card Printer

Datacard SP75 Plus Card Printer
Datacard SP75 Plus Card Printer
£0.00
Inc Tax: £0.00
  • Stock: In Stock
  • Model: 320-8620
  • Weight: 11.00kg
  • SKU: 320-8620

Available Options

Same Day Dispatch
Free UK delivery on orders over £150
Payments Made Easy
Card, Purchase Order, BACS, Cheque
Price Match
We always aim to have the best prices

Overview

The Datacard SP75 card printer delivers a powerful and unprecedented combination of advanced security and extreme reliability. Designed to protect critical assets and enhance security in addition to providing high quality output and fast, dependable operation, the SP75 card printer is well suited to accommodate the following card applications:

  • National ID
  • Ministry of Defence
  • National Government
  • Police
  • Access Control

Built on the same proven platform as Datacard SP Series card printers, the SP75 card printer is engineered for high reliability. Its design features fewer moving parts and a significantly higher duty cycle, enabling it to deliver outstanding productivity and consistent performance.

The SP75 card printer is also exceptionally versatile. It can laminate cards printed by another printer or print cards without laminating, as well as applying the same laminate to both sides or different laminates to each side of the card. As part of an integrated solution, it can issue contactless and contact smart cards, proximity cards and IDs with magnetic stripes and bar codes.


Features



  • One-sided or two-sided; edge-to-edge printing
  • Full colour or monochrome imaging
  • Up to 170 cards per hour front side YMCK ribbon with front side lamination
  • Up to 148 cards per hour front side YMCK-K ribbon, back side K with front side lamination
  • Direct-connect 10 Base-T Ethernet
  • Input hopper holds 100 - .030 in. (.76mm) cards (200 card hopper optional)
  • Output hopper holds 40 - .030 in. (.76mm) cards (100 card hopper optional)
  • LCD panel
  • Microsoft® Windows® Me, 2000 and XP operating system printer driver
  • Printer pooling for Windows 2000 and XP operating systems, also support Windows® 98 and Windows NT® 4.0 operating systems. Windows NT 4.0 support is via Ethernet connection for the SP75 printer
  • USB Cable Connection, Ethernet support
  • Datacard® Smart Driver™ printer driver
    • User adjustable image and colour controls
    • User defined print and topcoat panel blocking region
    • Stand-alone "smart" driver diagnostics
    • Colour image preview and colour preview test card, provides the ability to load a custom bitmap for the color settings preview
    • On-line user help via driver and new e-Guide
    • Audit trail, picked card and completed card counters available from driver
    • UV Ribbon support
    • Ability to laminate cards without printing them
    • Support for YMCKF-KT ribbon
    • Printer toolbox has also been translated to Brazilian Portuguese, in addition to other languages
    • The Windows XP and 2000 operating system driver runs in user mode and we allow installation on Windows Server™ 2003 operating system
  • Audio and visual message prompts
  • Automatic card feed
  • Smart Supplies with enhanced features
    • Automatic ribbon identification and validation
    • Automatic laminate and topcoat identification and validation
    • Automatic printer settings and offsets
    • Ribbon low warning
    • Advanced Imaging Technology™
  • Continuous cleaning roller
  • Operator-replaceable print heads
  • Easy-change ribbon cartridge replacement
  • Easy-change laminate and topcoat cartridge replacement


Options

  • Two laminators
  • Magnetic stripe encoding
    • IAT or NTT
    • Dual high and low coercivity
    • Tracks 1, 2 and 3 (1 track for NTT)
  • Smart card personalisation
    • Contact/contactless all-in-one reader
    • Contact station
    • HID iCLASS PC Prox Reader
  • Magnetic stripe encoding with smart card personalisation
  • Magnetic stripe and smart card field upgradability
  • Printer
  • PC Security Software
  • Hardware Lock suite
  • High capacity 200 card input hopper
  • High capacity 100 card output hopper
  • Customised service plans
  • Ribbon cartridge assembly
  • Laminate and topcoat cartridge assembly
  • Datacard StickiCard™ adhesive-backed plastic cards
  • Replacement printheads


Specifications

  • Print capabilities:
    • Edge-to-edge printing
    • Continuous-tone, full-colour, black-and-white photos
    • Alphanumeric text, logos and digitized signatures
    • Variety of bar codes
    • Background patterns
  • Lamination and topcoat capabilities
    • Lamination and duplex standard + Second laminator option
    • Both topcoat or patch lamination in any laminator
    • Printer automatically adapts to supply type
    • Superior laminate patch coverage
    • Energy saving idle feature
  • Print resolution: 300 dots-per-inch
  • Electrical requirements: Dual voltage-auto sensing
    • 100/120V, 50/60 Hz
    • 220/240V, 50/60 Hz
  • Communications: Bidirectional USB, Ethernet
  • Plastic cards accepted:
    • Size: 3.370 in. (85.6mm) x 2.125 in. (54.0mm)
    • Type: PVC with glossy laminate surface; other core materials with PVC overlaminates are optional
  • Thickness (+/- 10%):
    • Thickness for printing only - 0.020 to 0.050 inches (0.508 to 1.270 mm)
    • Thickness printing and laminating - 0.030 to 0.050 inches (0.762 to 1.27 mm)
    • Thickness with magnetic stripe (not laminated) - 0.020 to 0.040 inches (0.508 to 1.016 mm)
    • Thickness with magnetic stripe (laminated) - 0.030 to 0.040 inches (0.762 to 1.016 mm)
    • Thickness with smart card chip (contact) - 0.030 to 0.040 inches (0.762 to 1.016 mm)
    • Thickness with smart card chip (non-contact) - 0.030 to 0.050 inches (0.762 to 1.270 mm)
  • Resident memory: 16MB
  • Climate Conditions
    • 60°F to 95°F (15°C to 35°C)
    • 20% to 80% non-condensing humidity
  • Storage Conditions
    • 5°F to 140°F (-15°C to 60°C)
    • 10% to 90% - Humidity
  • Datacard Certified Supplies:
    • Ribbon kits include: One print ribbon, one adhesive cleaning sleeve, and one Isopropanol cleaning card
    • Ribbon kits available:
      • YMCK (three colours, black) - up to 500 images per roll
      • YMCKK (three colours, black front, black back) - up to 500 images per roll
      • YMCKF-KT (three colours, black, florescent ultraviolet, black, topcoat)
      • YMCKT-KT (three colours, black, topcoat, black, topcoat) - up to 300 images per roll
      • YMCKT (three colours, black and topcoat) - up to 250 or 500 images per roll
      • KT (black with topcoat) - up to 1000 images per roll
      • K (black) - at least 1500 images per roll
      • Black HQ
      • Additional colours available (red, dark blue, silver, white, scratch-off gray)
    • Cleaning supplies available:
      • Isopropanol Cleaning Card
      • Adhesive Cleaning Sleeve
      • Isopropanol Cleaning Pen
    • Storage Conditions for Datacard Certified Supplies:
      • 32°F to 77°F (0°C to 25°C)
      • 40% to 60% Humidity
      • No direct exposure to sunlight
  • Physical dimensions:
    • Small Footprint 23.1" L x 9.92" W (586.74 mm L x 251.97 mm W)
    • H = 18.82" to 23.52" (478.03 mm to 597.41 mm) depending on hopper options
  • Weight: Less than 27 pounds without supplies
  • Shade count: 256 shades


Manufacture Codes:
573590-001: Datacard SP75 Plus with single lamination station
573590-002: Datacard SP75 Plus with single lamination station + mag
573590-003: Datacard SP75 Plus with Dual lamination station
573590-004: Datacard SP75 Plus with Dual lamination station + mag
573590-005: Datacard SP75 Plus with Dual lamination station + dual contact/less reader
